浮標

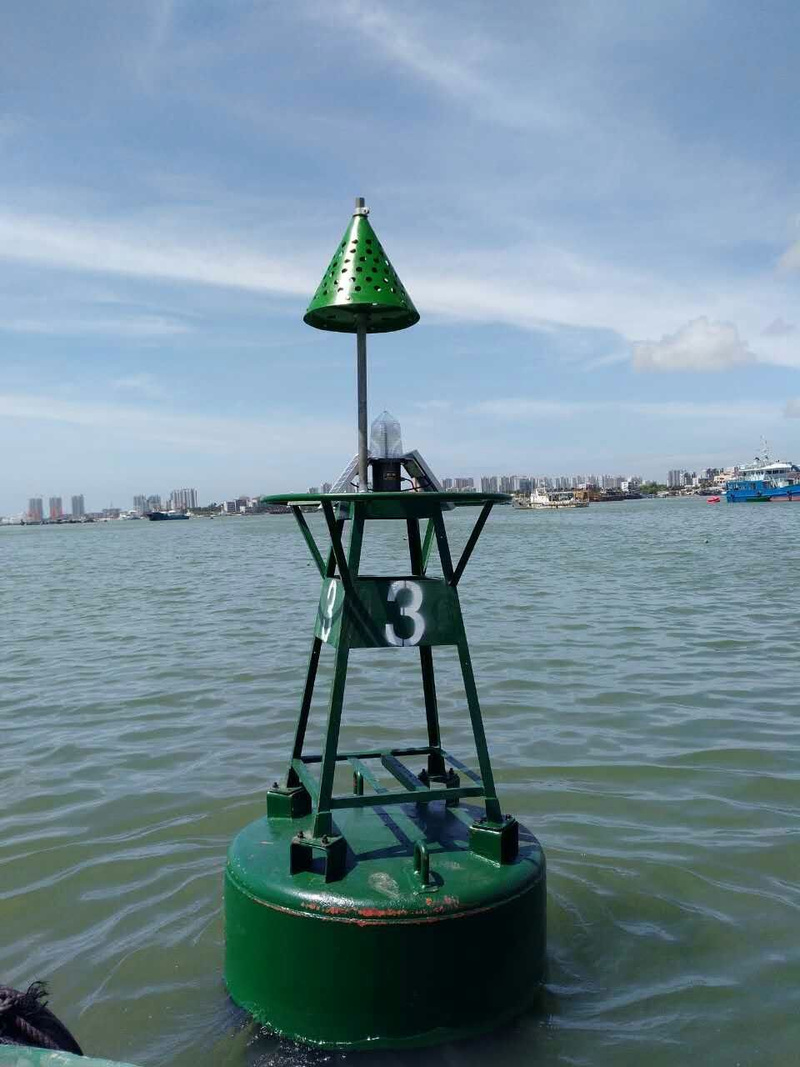

HF型深水浮標 HF Tail Tube Light Buoys
浮標型號及規格:/Buoy type and specifications：
型號
Type
直徑
Diameter
（mm)
燈架高度
Height
焦面高度
Focal Height
推薦燈器
Recommend Lantern
電源
Power Source
吃水
Draft
(mm)
拋設深度
Water Depth (m)
重量
Weight
(kg)
HF1.5-D1
1500
2350
3463
155mm
航標燈
Lantern
選配
Choice
And Fitting
2149
3.5-15
1250
HF1.8-D1
1800
2350
3388
155mm
航標燈
Lantern
選配
Choice
And Fitting
2140
6-15
1970
HF2.4-D1
2400
3040
4228
155mm
航標燈
Lantern
選配
Choice
And Fitting
4050
13-40
5200
HF3.0-D1
3000
3450
4750
155mm
航標燈
Lantern
選配
Choice
And Fitting
3480
13-40
5800
HF3.6-D1
3600
3450
4988/5127
155mm/300mm
航標燈
Lantern
選配
Choice
And Fitting
3000
13-60
6500
浮標錨鏈基本配套表：/Table of chains for Tail Tube Light buoys:
型號Type
馬鞍鏈
Bridle Chain
全鏈節
Main Chain
末端卸扣
End Shackle
(mm)
短鏈節
Short Chain
連接卸扣
Joining Shackle (mm)
沉石重量
Sinker Weight (ton)
HF1.5-D1
D=22mm x 2.76m 1根
D=22mm x 27.5m 1根
D=32-4 只
D=22mm x 4.5m 1根
D=28-1 只
1.5
HF1.8-D1
D=28mm x 2.77m 1根
D=28mm x 27.5m 1根
D=39-4 只
D=28mm x 4.5m 1根
D=36-1 只
2
HF2.4-D1
D=34mm x 5.26m 1根
D=34mm x 27.5m 1根
D=48-4 只
D=34mm x 4.5m 1根
D=44-1 只
3
HF3.0-D1
D=37mm x 5.24m 1根
D=37mm x 27.5m 1根
D=52-4 只
D=37mm x 4.5m 1根
D=58-1 只
4
HF3.6-D1
D=40mm x 5.24m 1根
D=40mm x 27.5m 1根
D=56-4 只
D=40mm x 4.5m 1根
D=52-1 只
5
浮標
HF型深水浮標 HF Tail Tube Light Buoys
浮標型號及規格:/Buoy type and specifications：
|
型號 Type |
直徑 Diameter （mm) |
燈架高度 Height |
焦面高度 Focal Height |
推薦燈器 Recommend Lantern |
電源 Power Source |
吃水 Draft (mm) |
拋設深度 Water Depth (m) |
重量 Weight (kg) |
| HF1.5-D1 | 1500 | 2350 | 3463 |
155mm 航標燈 Lantern |
選配 Choice And Fitting | 2149 | 3.5-15 | 1250 |
| HF1.8-D1 | 1800 | 2350 | 3388 |
155mm 航標燈 Lantern |
選配 Choice And Fitting | 2140 | 6-15 | 1970 |
| HF2.4-D1 | 2400 | 3040 | 4228 |
155mm 航標燈 Lantern |
選配 Choice And Fitting | 4050 | 13-40 | 5200 |
| HF3.0-D1 | 3000 | 3450 | 4750 |
155mm 航標燈 Lantern |
選配 Choice And Fitting | 3480 | 13-40 | 5800 |
| HF3.6-D1 | 3600 | 3450 | 4988/5127 |
155mm/300mm 航標燈 Lantern |
選配 Choice And Fitting | 3000 | 13-60 | 6500 |
浮標錨鏈基本配套表：/Table of chains for Tail Tube Light buoys:
| 型號Type |
馬鞍鏈 Bridle Chain |
全鏈節 Main Chain |
末端卸扣 End Shackle (mm) |
短鏈節 Short Chain |
連接卸扣 Joining Shackle (mm) |
沉石重量 Sinker Weight (ton) |
| HF1.5-D1 | D=22mm x 2.76m 1根 | D=22mm x 27.5m 1根 | D=32-4 只 | D=22mm x 4.5m 1根 | D=28-1 只 | 1.5 |
| HF1.8-D1 | D=28mm x 2.77m 1根 | D=28mm x 27.5m 1根 | D=39-4 只 | D=28mm x 4.5m 1根 | D=36-1 只 | 2 |
| HF2.4-D1 | D=34mm x 5.26m 1根 | D=34mm x 27.5m 1根 | D=48-4 只 | D=34mm x 4.5m 1根 | D=44-1 只 | 3 |
| HF3.0-D1 | D=37mm x 5.24m 1根 | D=37mm x 27.5m 1根 | D=52-4 只 | D=37mm x 4.5m 1根 | D=58-1 只 | 4 |
| HF3.6-D1 | D=40mm x 5.24m 1根 | D=40mm x 27.5m 1根 | D=56-4 只 | D=40mm x 4.5m 1根 | D=52-1 只 | 5 |
